Miniature 162
Safety certification,snap action
Fetures:
- Rating from 0.1A to 26A
- A variety of terminal and levers are available
- High reliability, high stability
- UL, ENEC, CQC and other certifications
| Pictures | Rating | Circuits | Operating force | Electrical life | Lever type | Terminal type | Certification category | Specificatio |
 |

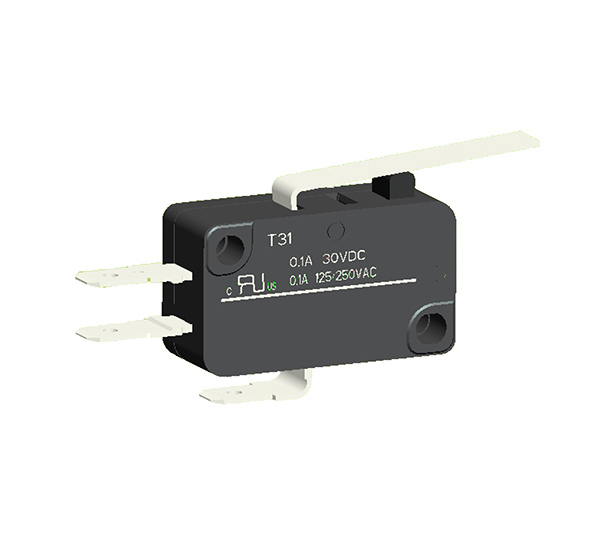

0.1A 125/250VAC 0.1A 30VDC |
SPST-NO | 120gf max | 6,000 cycles | Pin plunger | Quick connect (#250) | UL | |
 |
3A 125/250VAC | SPST-NO | 50gf max | 10,000 cycles | Flat lever | Quick connect (#187) | UL, ENEC, CQC | |
 |
5A 125/250VAC | SPST-NO | 160gf max | 10,000 cycles | Flat lever | Quick connect (#187） | UL, ENEC, CQC | |
 |

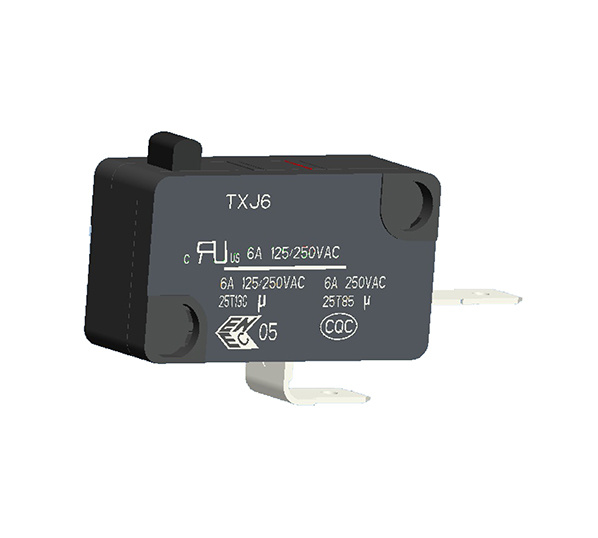

6A 125/250VAC | SPST-NO | 260gf max | 10,000 cycles | Pin plunger | Quick connect (#187) | UL, ENEC, CQC | |
 |
10A 125/250VAC | SPST-NC | 200gf max | 50,000 cycles | Flat plunger | Quick connect (#187) | UL, ENEC, CQC | |
 |
16A 125/250VAC | SPDT | 250gf max | 50,000 cycles | Pin plunger | Quick connect (#187) | UL, ENEC, CQC | |
 |
22A 125/250VAC | SPST-NO | 160gf max | 30,000 cycles | Pin plunger | Quick connect (#250) | ENEC | |
 |
26A 125/250VAC | SPDT | 200gf max | 50,000 cycles | Pin plunger | Quick connect (#187) | ENEC | |
 |
0.1A 125/250VAC | SPDT | 30gf max | 6,000 cycles | Flat lever | Quick connect (#187) | UL | |
 |
5A 125/250VAC | SPDT | 130gf max | 10,000 cycles | Pin plunger | Quick connect (#187) | UL, ENEC, CQC | |
 |
5A 125/250VAC | SPDT | 200gf max | 10,000 cycles | Flat lever | Quick connect (#187) | UL, ENEC, CQC | |
 |
6A 125/250VAC | SPDT | 220gf max | 10,000 cycles | Bending lever | Quick connect (#187) | UL, ENEC, CQC | |
 |
10A 125/250VAC | SPST-NO | 250gf max | 50,000 cycles | Pin plunger | Quick connect (#187) | UL, ENEC, CQC | |
 |
16A 125/250VAC | SPST-NO | 200gf max | 50,000 cycles | Pin plunger | Quick connect (#250) | UL, ENEC, CQC | |
 |
22A 125/250VAC | SPST-NC | 200gf max | 30,000 cycles | Pin plunger | Quick connect (#250) | ENEC |
