Sub-miniature switches 165
Up to 10A ac & 0.1A dc (UL, ENEC, CQC). Variety of levers, operating forces, terminations, contacts. 9,5 mm centers side mount.
Features:
- Precision subminiature switch with high repeat accuracy
- Switching Current 0.1 A to 10 A 250VAC
- Leaf spring inner structure available, appliable to DC rating
- Wide variety of levers available
- Actuators can also be retrofitted
- Ambient temperature -40 to +120°C max.
- UL, cUL, ENEC, CQC and other certifications.
| Picture | Rating | Circuits | Operating force | Electrical life | Lever type | Terminal type | Certification category | Specifications |
 |
1A 125/250VAC | SPST | 120gf max | 50,000 cycles | Pin plunger | Solder | UL, ENEC, CQC | |
 |

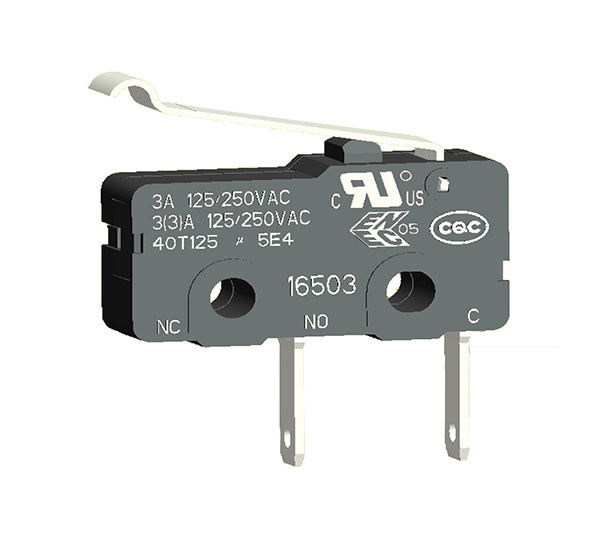

3A 125/250VAC | SPST-NO | 80gf max | 50,000 cycles | Bending lever | Long quick connect | UL, ENEC, CQC | |
 |
5A 125/250VAC | SPST | 110gf max | 50,000 cycles | Pin plunger | Solder | UL, ENEC, CQC | |
 |

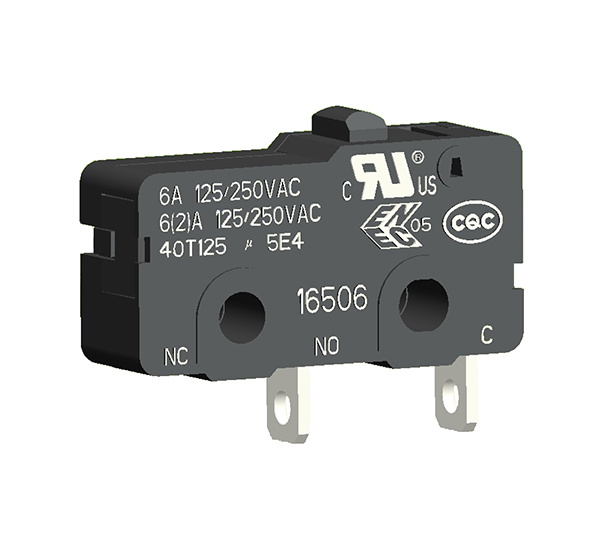

6A 125/250VAC | SPST-NO | 160gf max | 50,000 cycles | Pin plunger | Solder | UL, ENEC, CQC | |
 |
10A 125/250VAC | SPST-NO | 8 0gf max | 50,000 cycles | Flat plunger | Solder | UL, ENEC, CQC | |
 |
3A 125/250VAC | SPDT | 70gf max | 50,000 cycles | Roller lever | Solder | UL, ENEC, CQC | |
 |
5A 125/250VAC | SPST-NC | 110gf max | 50,000 cycles | Pin plunger | Solder | UL, ENEC, CQC | |
 |

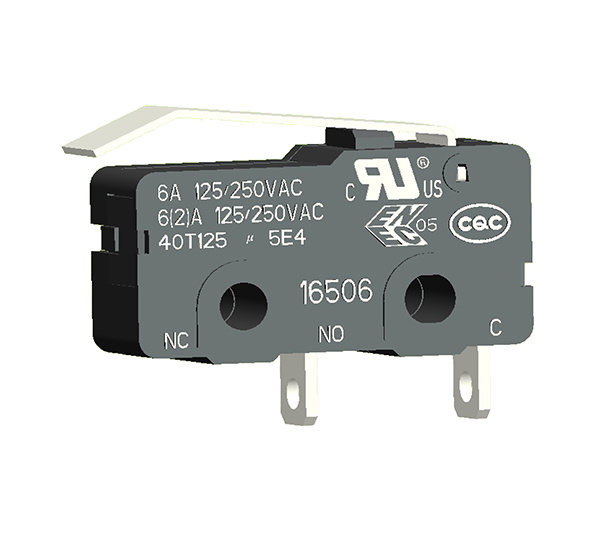

6A 125/250VAC | SPST-NO | 55gf max | 50,000 cycles | Bending lever | Solder | UL, ENEC, CQC | |
 |
10A 125/250VAC | SPDT | 200gf max | 50,000 cycles | Pin plunger | Solder | UL, ENEC, CQC |
