Large basic switches 1DM
Accurate, reliable, and repeatable, 1DM series features precise operating characteristics and enhanced life. These premium, large snap-action switches offer precision operation and sensitive differential travel.
Features:
-
Current rating up to 20 amps at 250 VAC
-
Wide variety of actuators, screw or solder terminals available
-
Mechanical life tested to over 20 million cycles
- International certification: UL, CE, CQC
| Picture | Rating | Circuits | Operating force | Electrical life | Lever type | Terminal type | Installation Type | Certification category |
 |
10A 125/250VAC | SPDT | 10gf max | 10,000 cycles | Direct pressing handle | 250# quick connection terminal | lateral apperture | UL /ENEC |
 |
10A 125/250VAC | SPST-NO | 10gf max | 10,000 cycles | Direct pressing handle | 250# quick connection terminal | lateral apperture | UL /ENEC |
 |
10A 125/250VAC | SPDT | 10gf max | 10,000 cycles | Direct pressing handle | M6 screw terminal | lateral apperture | UL /ENEC |
 |
20A 125/250VAC | SPST-NC | 570gf max | 10,000 cycles | No handle | M8 screw terminal | lateral apperture | UL /ENEC |
 |
20A 125/250VAC | SPST-NO | 570gf max | 10,000 cycles | No handle | M8 screw terminal | lateral apperture | UL /ENEC |
 |
20A 125/250VAC | SPDT | 570gf max | 10,000 cycles | No handle | M8 screw terminal | lateral apperture | UL /ENEC |
 |
20A 125/250VAC | SPDT | 570gf max | 10,000 cycles | No handle | M8 screw terminal 250# quick connection terminal | lateral apperture | UL /ENEC |
 |

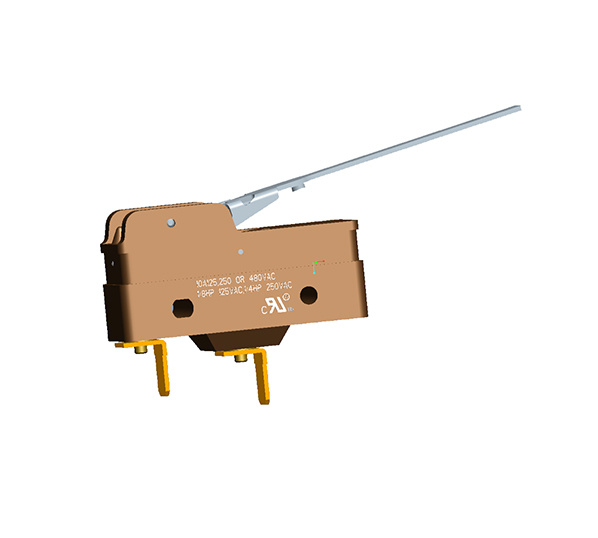

10A 125, 250 or 480 VAC 1/8HP 125 VDC |
SPDT | 10gf max | 100,000 | Direct pressing handle | Quick plug terminal | / | UL, CE, CQC |
 |

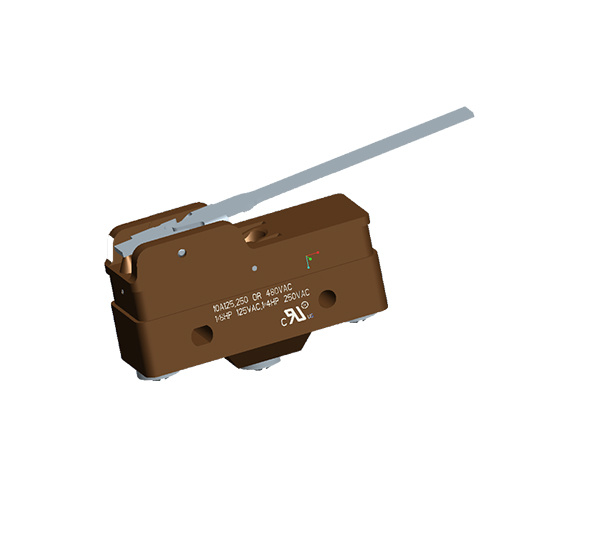

10A 125, 250 or 480 VAC 1/8HP 125 VDC |
SPDT | 10gf max | 100,000 | Direct pressing handle | Nut terminal | / | UL, CE, CQC |
 |
10A 125, 250 or 480 VAC 1/8HP 125 VDC |
SPST-NO | 10gf max | 100,000 | Direct pressing handle | Quick plug terminal | / | UL, CE, CQC |
 |

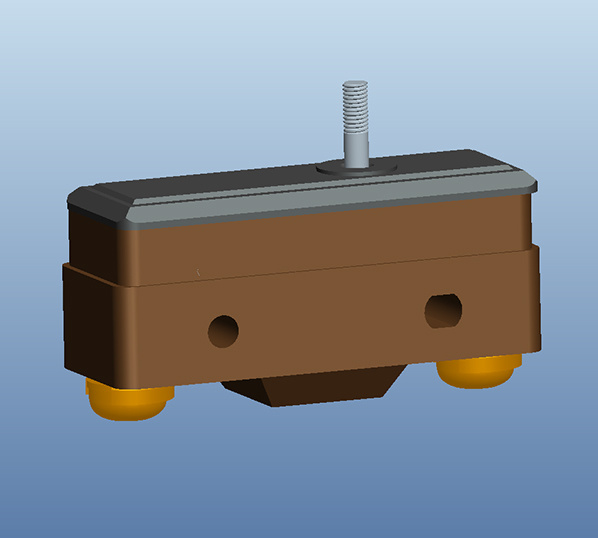

20(3)A 250VAC | SPST-NC | 700gf max | 100,000 | No handle | screw terminal | UL, CE, CQC | |
 |

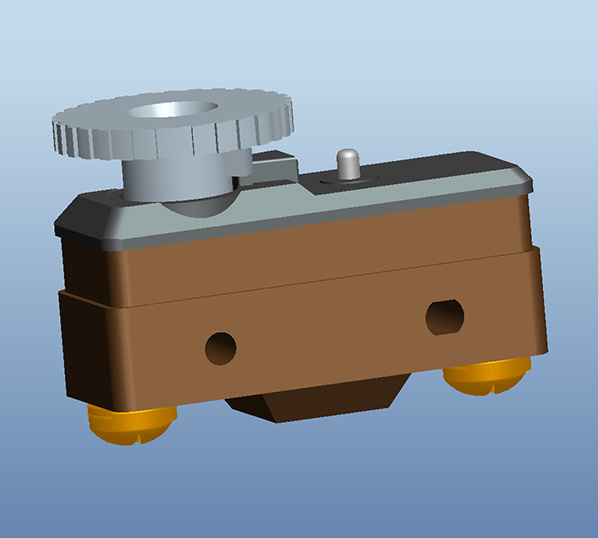

20A 125,250OR480VAC | SPST-NC | 300-500gf | 100,000 | Rotary knob | screw terminal | / | UL, CE, CQC |
 |
20(3)A 250VAC | SPDT | 300-500gf | 100,000 | No handle | screw terminal | / | UL, CE, CQC |
 |
20(3)A 250VAC | SPDC | 450gf max | 100,000 | No handle | screw terminal | / | UL, CE, CQC |
