Professional design, development and production of digital encoder, electronic switch and high and low voltage connector

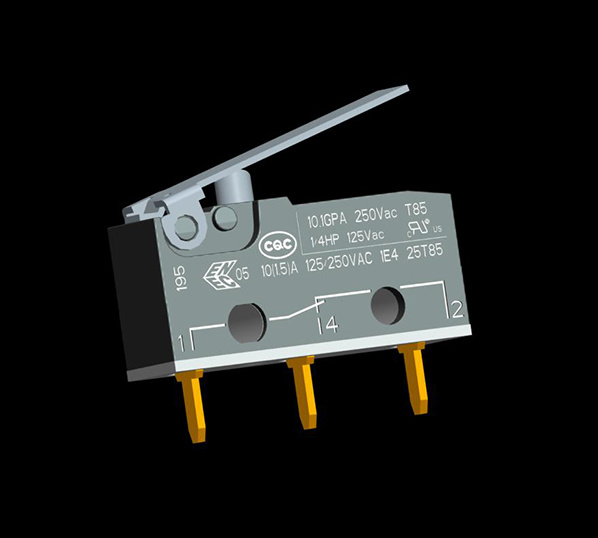

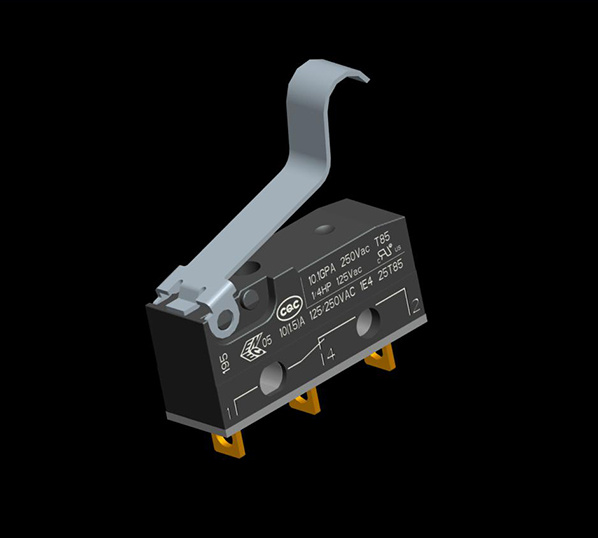

Subminiature switches 195

图片名称

Precision subminiature switch with high repeat accuracy, available up to an operating temperature of 120°C

One-piece terminal construction to keep out flux

Equal terminals space

Features:

  • Precision subminiature switch with high repeat accuracy
  • Switching Current 0.1 A to 10 A AC
  • Wide variety of levers, terminals type available
  • Actuators can also be retrofitted
  • Ambient temperature -40 to max. +120 °C
  • Degree of protection IP50
  • With UL, cUL, ENEC, CQC and other certifications;
Picuture Rating Circuits Operating force Electrical life Lever type Terminal type Certification category
防尘金微动 10A 125/250VAC SPDT 120gf max 50000 Flat lever Pin terminal UL ENEC CQC
防尘金微动 10A 125/250VAC SPDT 120gf max 50000 Simulated roller lever Pin terminal UL ENEC CQC
防尘金微动 10A 125/250VAC SPDT 120gf max 50000 Flat lever Wire bonding terminal UL ENEC CQC
防尘金微动 10A 125/250VAC SPDT 120gf max 50000 Simulated roller lever Wire bonding terminal UL ENEC CQC
防尘金微动 10A 125/250VAC SPDT  300gf max 50000 Pin plunger Pin terminal UL ENEC CQC
