正牌科电

PRODUCT

Professional design, development and production of digital encoder, electronic switch and high and low voltage connector

/
/
/
/
Miniature switches 162
Number of views:
1000

Miniature switches 162

Retail price
0.0
Market price
0.0

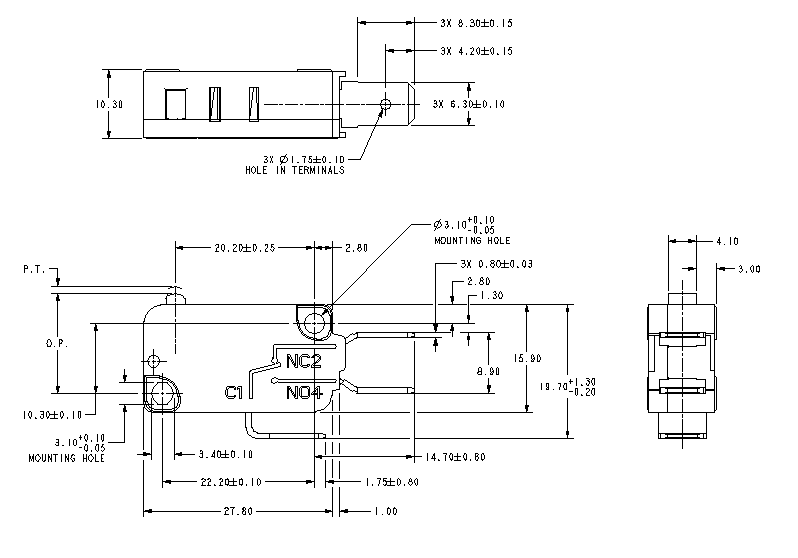

27.8L x 10.3W x 15.9H
Product serial number
Quantity
-
+
Stock:
0

With miniature sizes and 0.1A to 26A range. We can offer wide actuation, termination, operating and temperature options.

Features:

  • A variety of terminal and levers are available
  • Ambient temperature -40 to max. +150 °C
  • Cadmium-free contact materials available
  • Halogen-free plastic material
  • Degree of protection IP40
  • With UL, cUL, ENEC, CQC and other certifications
Picture Rating Circuits Operating force Electrical life Lever type Terminal type Certification category
sc1 125/250Vac  26A max SPDT 400gf max 50,000 cycles Pin plunger 250 quick-insertion  ENEC UL CQC

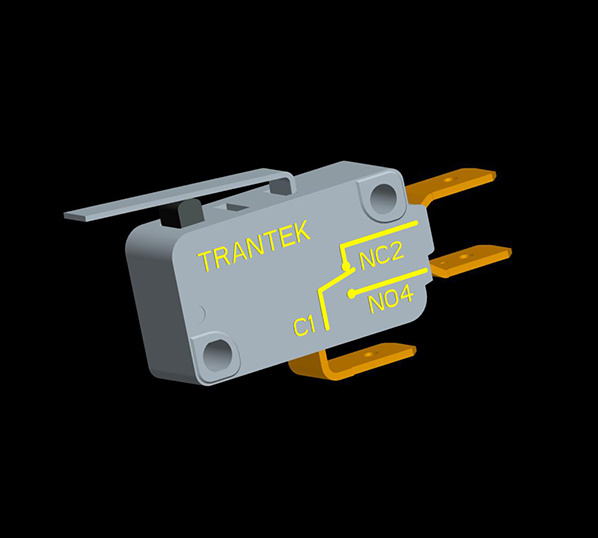

sad2 125/250Vac  26A max SPDT 240gf max 50,000 cycles Flat lever 250 quick-insertion ENEC UL CQC
sdad21 125/250Vac  26A max SPDT 400gf max 50,000 cycles Pin plunger Short solder terminals ENEC UL CQC
sad123 125/250Vac  26A max SPDT 400gf max 50,000 cycles Pin plunger Short solder terminals ENEC UL CQC
2132113 125/250Vac  26A max SPDT 400gf max 50,000 cycles Pin plunger Rast terminals ENEC UL CQC
13156m 125/250Vac  26A max SPDT 400gf max 50,000 cycles Pin plunger Short soldering terminals ENEC UL CQC
撒3214 125/250Vac  26A max SPDT 400gf max 50,000 cycles Pin plunger Left PCB terminals ENEC UL CQC
王企鹅1421 125/250Vac  26A max SPDT 400gf max 50,000 cycles Pin plunger Right PCB terminals ENEC UL CQC
d2321333qqw 125/250Vac  26A max SPDT 480gf max 50,000 cycles Roller lever Flat thread terminals ENEC UL CQC

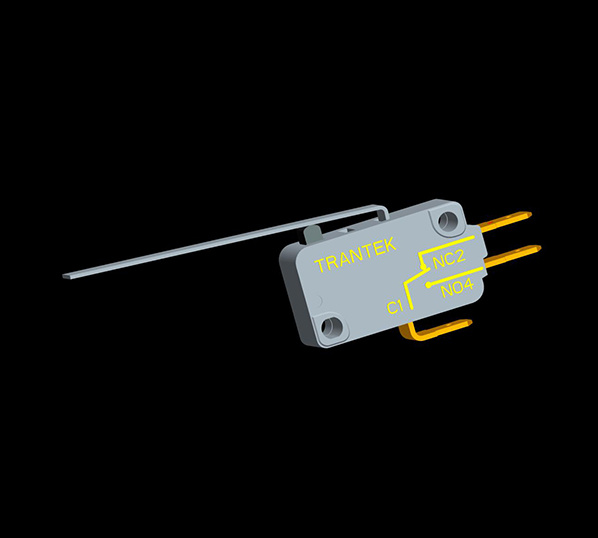

撒大声地44 125/250Vac  26A max SPDT 120gf max 50,000 cycles Long flat lever 187 quick-insertion ENEC UL CQC
sdahhbb 125/250Vac  26A max SPST-NO 400gf max 50,000 cycles Pin plunger 250 quick-insertion ENEC UL CQC
dsagg 125/250Vac  26A max SPST-NC 400gf max 50,000 cycles Pin plunger 250 quick-insertion  ENEC UL CQC



示范点3
