Explosion-proof switches E2
E2 series ex-proof switch is IEC Ex certified to be used in explosive environments. It is well suited for enabling safe, repeatable switch performance in high-volume applications.
Features:
-
Approved for use in Zone 2 hazardous areas.
-
5 A electrical rating.
-
Over 1 million mechanical operations
-
Explosion proof level: Ex nC IIA T5 Gc
-
High reliability and stability, with UL, cUL, ENEC, QCQ, IEC Ex certifications
| Picture | Rating | Contact type | Operating force | Electrical life | Lever type | Terminal type | Protection level | Specification parameter |
 |
5A 125/250VAC | SPST | 110gf max | 50,000 cycles | Pin plunger | Solder | IP67， be explosion-proof | |
 |
5A 125/250VAC | SPDT | 90gf Max | 50,000 cycles | Short lever | Solder | IP67 | |
 |
5A 125/250VAC | SPDT | 60gf Max | 50,000 cycles | Staandard lever | Solder | IP67 | |
 |

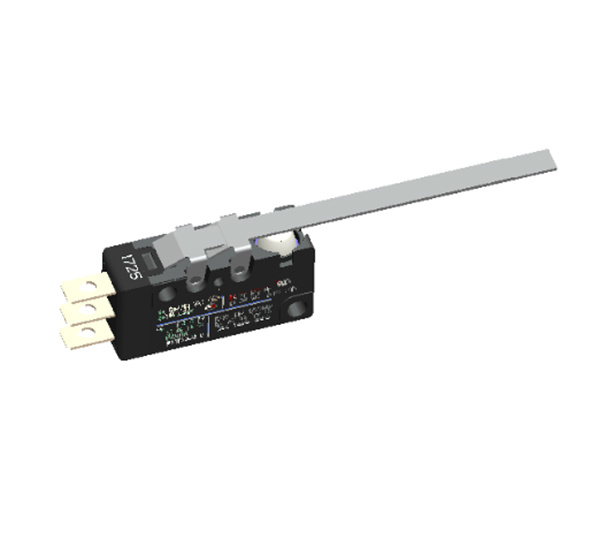

5A 125/250VAC | SPDT | 40gf Max | 50,000 cycles | Long lever | Solder | IP67 | |
 |
5A 125/250VAC | SPDT | 70gf Max | 50,000 cycles | Simulated roller lever | Solder | IP67 | |
 |

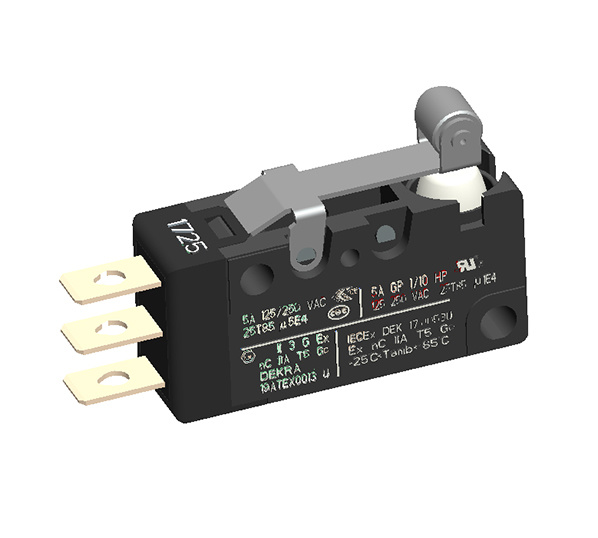

5A 125/250VAC | SPDT | 100gf Max | 50,000 cycles | Roller lever | Solder | IP67 | |
 |
5A 125/250VAC | SPDT | 80gf Max | 50,000 cycles | Long roller lever | Solder | IP67 |
