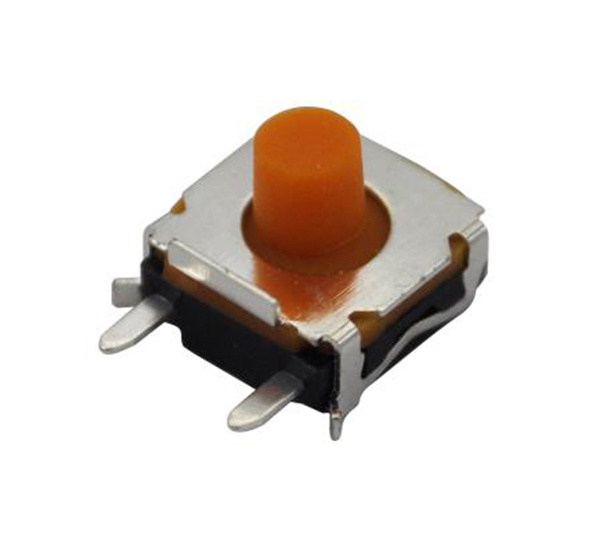

Sealed tact switch


Small size, IP67 standard


  • Sealed structure with compact dimension
  • Long endurance up to 5 million cycles
  • Multiple operating force optional
  • Various button height optional
  • Anti vibration and collision, applicable for harsh environment
Picture Size Height Terminal type Operating force Electrical life Installation method Button Specifications
img 6.2*6.2mm H: (2.5-5.0mm) SMT-pin 210gf max 100,000 cycles Side insert Soft rubber
img 6.2*6.2mm H: (2.5-5.0mm) SMT-J 160gf max 100,000 cycles SMT Soft rubber
img 6.2*6.2mm H:(2.5-5.0mm) SMT-Z type 250gf max 100,000 cycles Vertical SMT Soft rurbber
