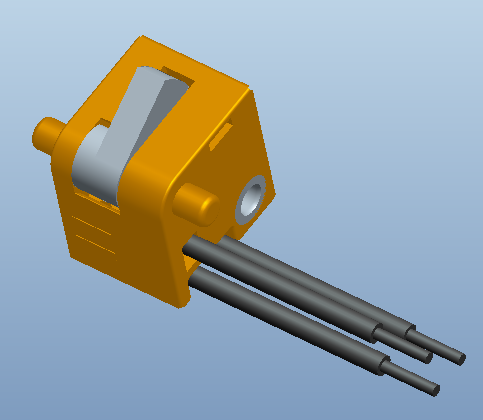

Series B1 mini monitoring switch

Features

1. Designed for small current applications

2. Compact and compact dimensions

3. Adapt to a variety of different outgoing direction applications

4.It has the structure of direct plug into PCB board

5.1P2T,1P1T-NC,1P1T-NO three optional circuit

Applications

1. Automotive electronics

2. Communication equipment

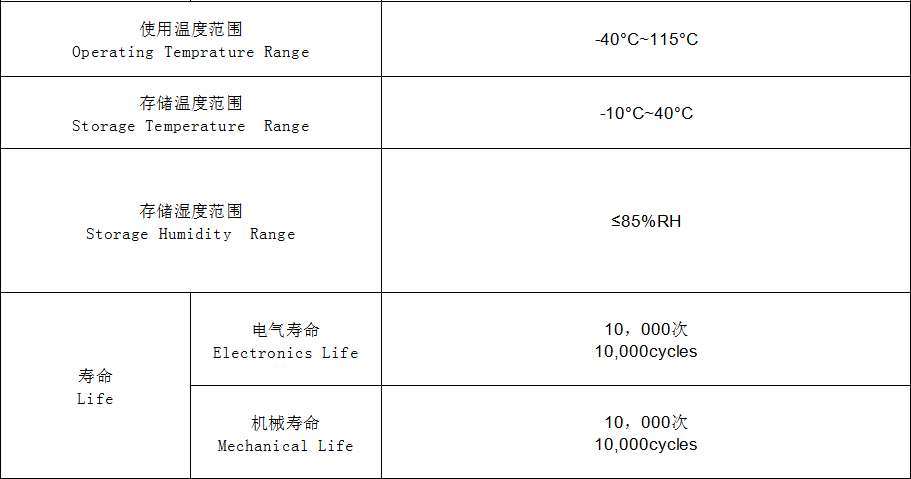

Material

Thermoplastic shell, long-term operating temperature: -40~115°C
