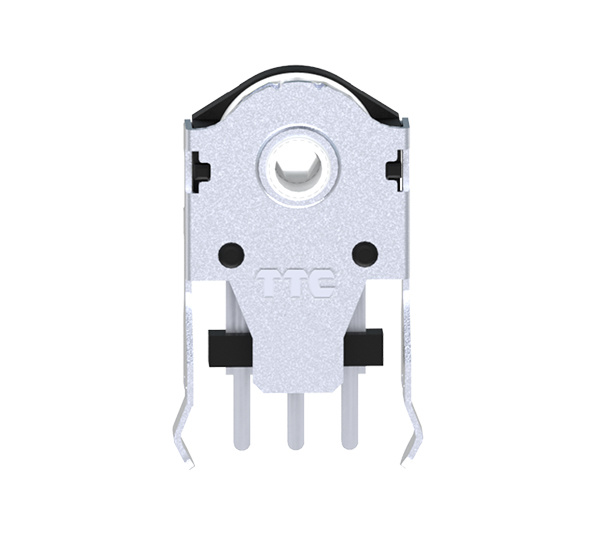

TTC silver wheel encoder

Retail price
0.0
元
Market price
0.0
元
1 million cycles life, gaming encoder, high precision, clear scale recognition
Product serial number
Category
Encoder
Quantity
-
+
Stock:
0

High precision and clear scale recognition

Features:

  • 1 million circles, 25 million grids, long lifespan
  • Tailored for gaming peripherals, with a clear sense of passage
  • The structure is optimized to achieve the minimum torque to obtain a good scale feel
  • Bell mouth design prevents the scroll wheel from accidentally touching the down switch
Encoder Installation height Torque Output waveform Hexagonal hole size Output signal Specification


 9mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 10mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 11mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 13mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 14mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 15mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 16mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase





TTC encoder installation coordination



TTC encoder dust-proof seal design description (internal seal)
