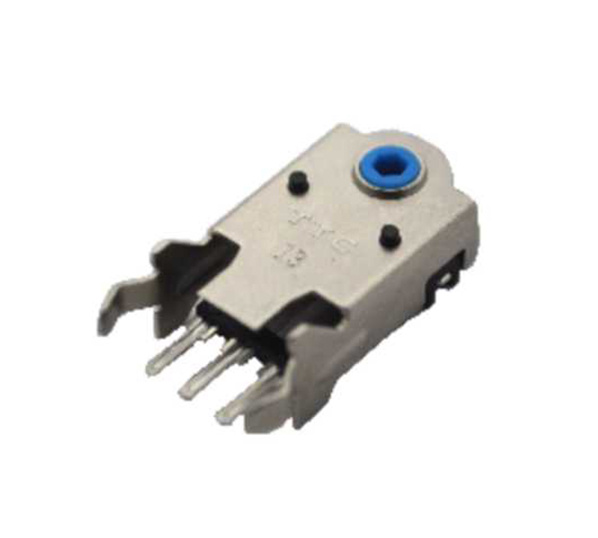

TTC conventional encoder

Retail price
0.0
元
Market price
0.0
元
High precision and complete specifications
Product serial number
Category
Encoder
Quantity
-
+
Stock:
0

High precision and complete specifications

Features:

  • Output waveform 12 positioning 6 pulses, 12 positioning 12 pulses, 24 positioning 12 pulses, 30 positioning 15 pulses (customizable)
  • Installation height: 2.8/3.5/4.5/5.1/5.5/7/8/9/10/11/12.6/13/14/16
  • Torque: 1. No torque; 2. 20gf.cm~40gf.cm
Encoder Installation height Torque Output waveform Hexagonal hole size Output signal Specification


 5.1mm 15-30gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 5.5mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 7mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 8mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 9mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 10mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 11mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 12.6mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 13mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase


 14mm 20-40gf.cm 24 card points and 12 waveforms 3-1.74±0.03mm A, B two phase
