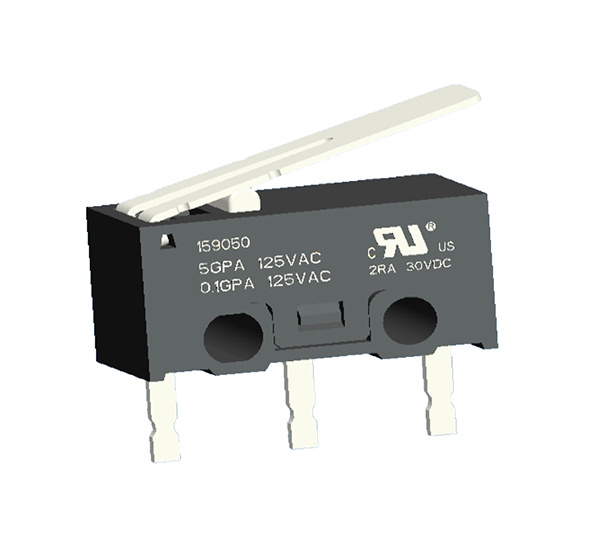

Sub-subminiature switches 159
The 159 series is rated for controlling electrical loads ranging from logic-level/computer-based circuits to limited power-duty switching (up to 5 A/125 Vac). Variety of actuators, forces, terminations, contacts available. 6.5mm centers side mount.
Features：
- Extremely small dimensions (mm): 12.8L x 5.8W x 6.5H
- Breaking capacity ranges from small switching currents and voltages to low-voltage applications up to 5 A 125 VAC
- Multiple levers, terminals available
- Operating temperature: -25°C to +85°C
- Degree of protection IP40
- UL, cUL, ENEC, CQC and other certifications
| Picture | Rating | Circuits | Operating force | Electrical life | Lever type | Terminal type | Certification category | Specification parameter |
 |
0.1A 125/250VAC 0.1A 30VDC |
SPDT | 75gf max | 30,000 cycles | Flat lever | Pin type | UL, ENEC, CQC | |
 |
1.5A 125/250VAC 1.5A 30VDC |
SPDT | 200gf max | 30,000 cycles | Pin plunger | Pin type | UL, ENEC, CQC | |
 |
3A 125/250VAC 2A 30VDC |
SPDT | 80gf max | 30,000 cycles | Flat lever | Clip type | UL, ENEC, CQC | |
 |
0.1 125/250VAC 0.1A 30VDC |
SPDT | 75gf max | 30,000 cycles | Flat lever | Pin type | UL, ENEC, CQC | |
 |
0.1A 125/250VAC 0.1A 30VDC |
SPDT | 250gf max | 30,000 cycles | Pin plunger | Pin type | UL, ENEC, CQC | |
 |
1.5A 125/250VAC 1.5A 30VDC |
SPDT | 75gf max | 30,000 cycles | Flat plunger | Pin type | UL, ENEC, CQC | |
|
1.5A 125/250VAC 1.5A 30VDC |
SPDT | 75gf max | 30,000 cycles | Pin plunger | Pin type | UL, ENEC, CQC | |
 |
3A 125/250VAC 2A 30VDC |
SPDT | 75gf max | 30,000 cycles | Pin plunger | Pin type | UL, ENEC, CQC | |
 |
5A 125/250VAC 2A 30VDC |
SPDT | 70gf max | 30,000 cycles | Bending lever | Pin type | UL, ENEC, CQC | |
|
5A 125/250VAC 2A 30VDC |
SPDT | 75gf max | 30,000 cycles | Flat lever | Pin type | UL, ENEC, CQC | |
 |
5A 125/250VAC 2A 30VDC |
SPDT | 250gf max | 30,000 cycles | Pin plunger | Long solder terminal | UL, ENEC, CQC |
